Sunday, 5 February 2012

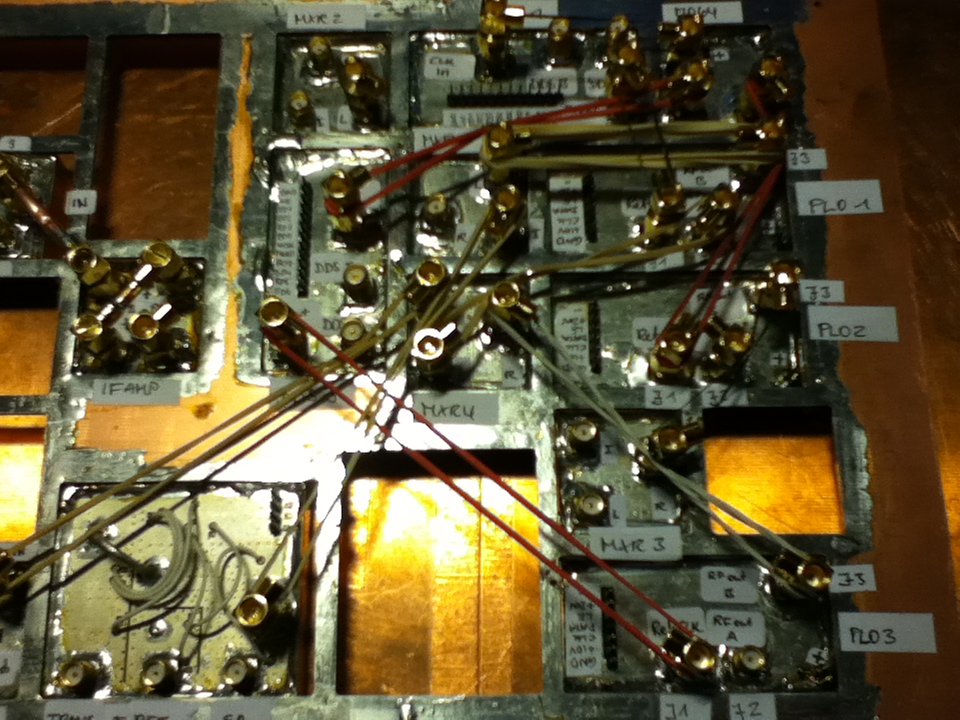

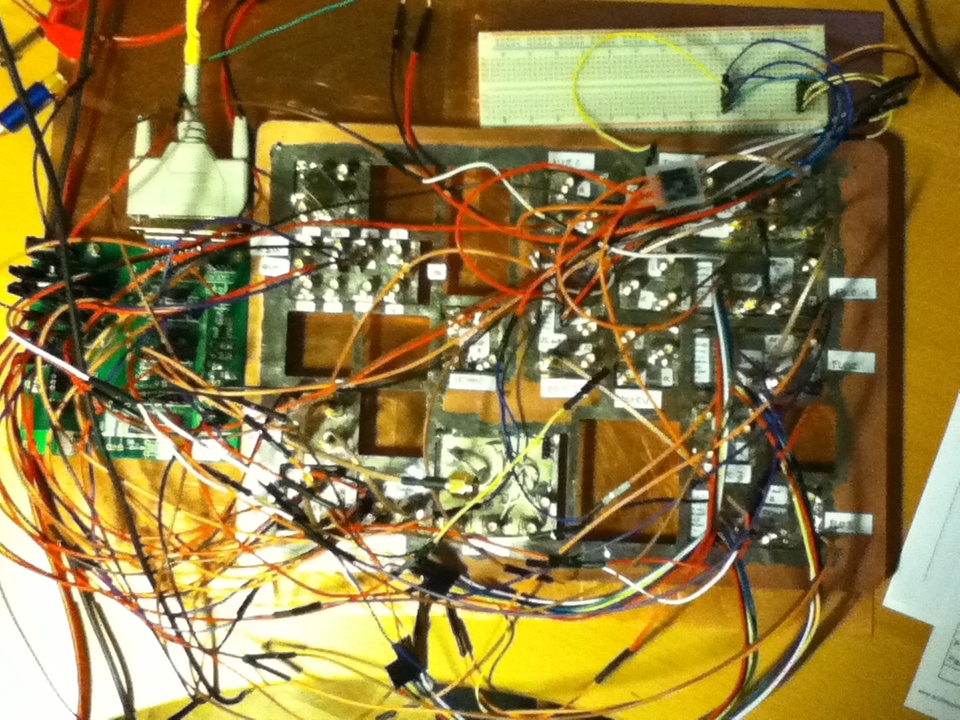

Rearranging the Enclosure











I only have two of these connectors so I will have to order at least another six.







Tektronix Oscilloscope

I finally found a 1 GHz analog Tektronix 7104. The technology, especially the microchannel CRT, is truly mesmerising for the age it was developed in.

It's in fantastic shape, considering its age. Current plugins are a 7A22 Differential amplifier, 7A29 1 GHz amplifier, 7B10 and 7B15 delayed time base.

Two active 900 MHz FET probes TEK 6201


Quite a few extra plugins. Mainly 7A24 and 7A26 amplifiers as well as some additional time bases.


It replaced my old 20 MHz analog scope from LG. It's still working just fine after 15 years.
